SA150-SFS10

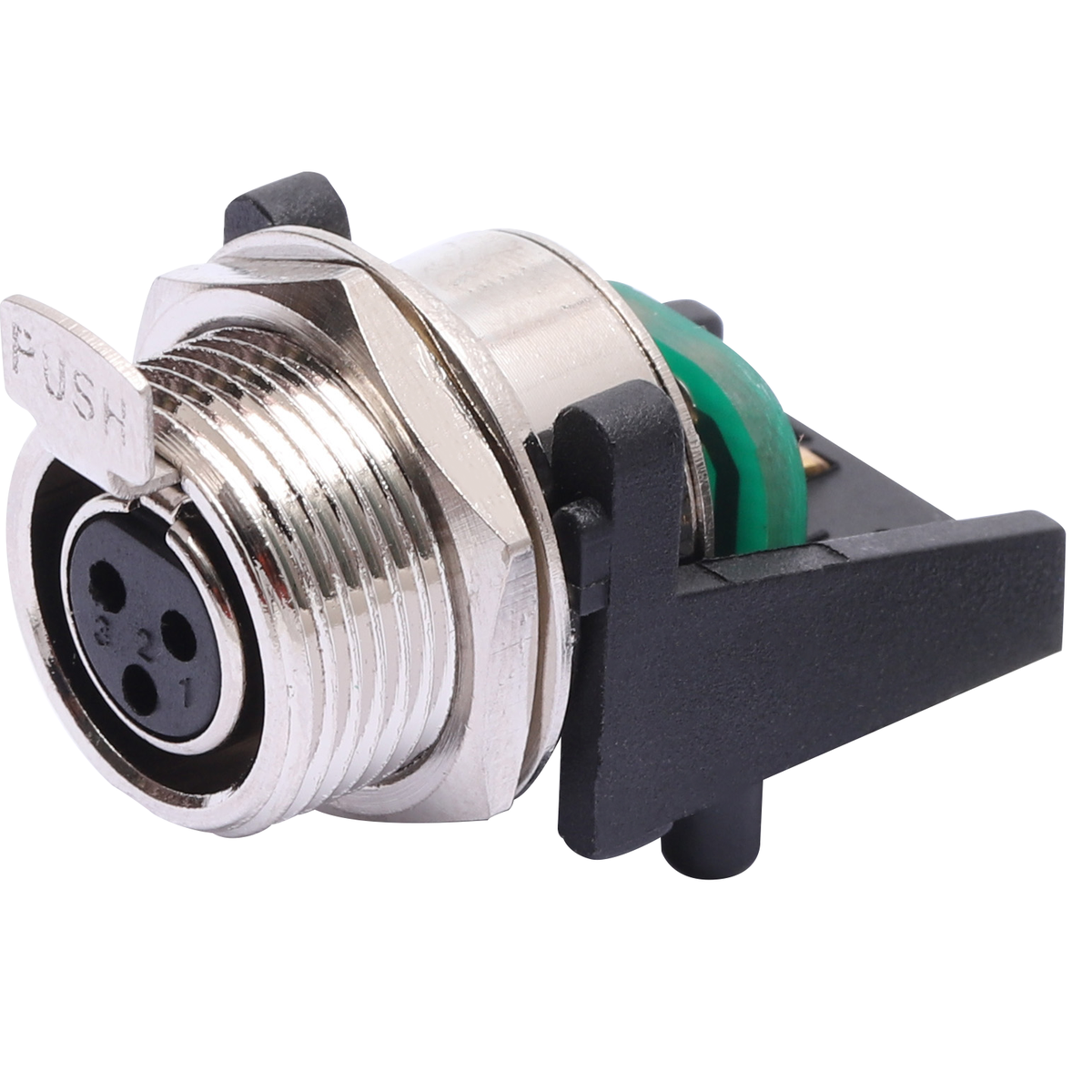

The ‌mini XLR is a compact variant of the standard XLR connector, widely used in professional audio and electronic equipment for balanced signal transmission, ideal for space-constrained applications.

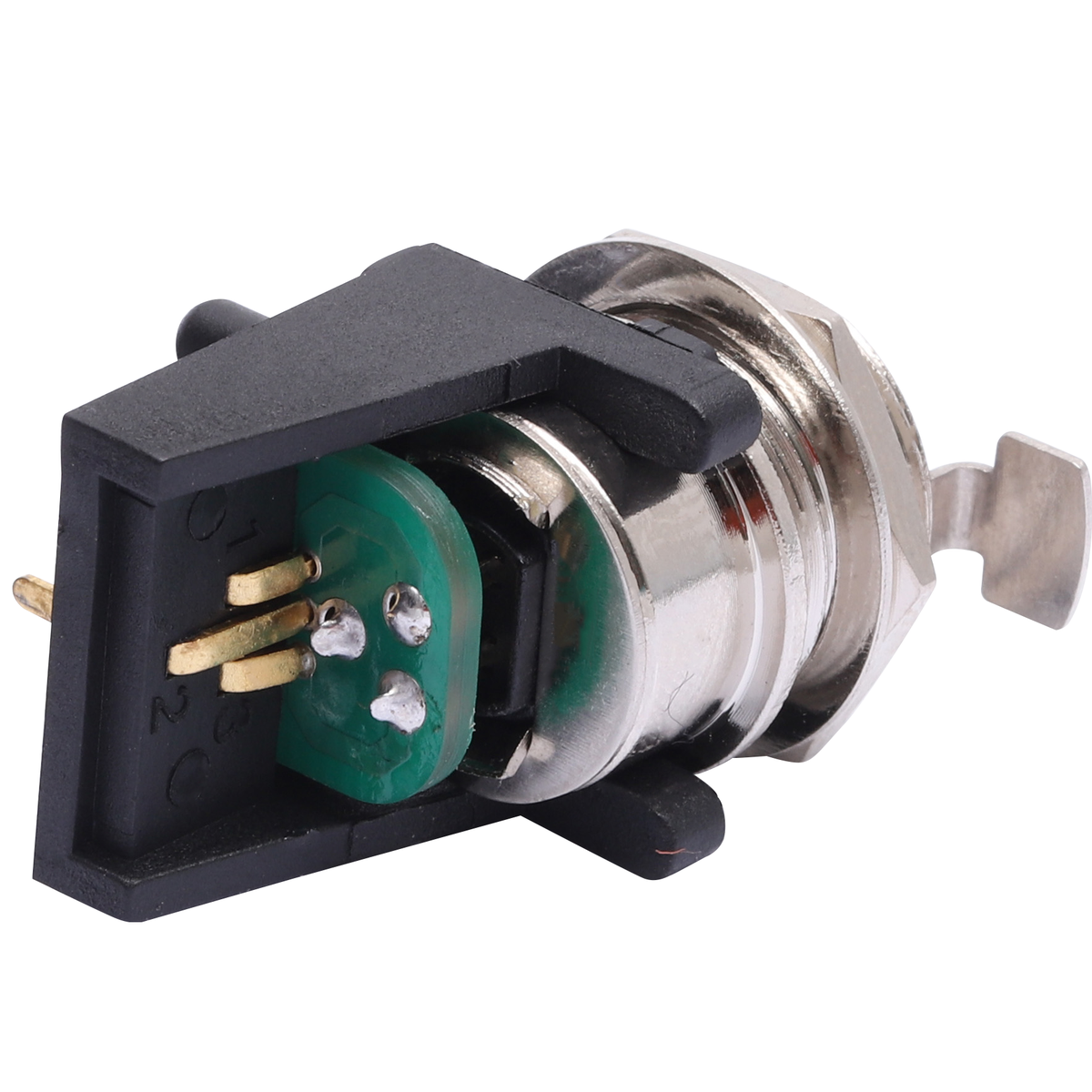

Pin direction: Right Angle with push button
‌Technical Standards‌: Mini XLR connectors comply with industrial specifications, ensuring reliability in signal integrity and durability
Applications: High-end audio systems / Industrial signal connectors / Healthcare connectors

Features:

Pin Number: 2-8 pins
Contact Plating: Nickel
Applicable Cable Diameter: φ1.5~φ6mm

Categories: Mini XLR Socket

SA150-SFS10

SA150-SFS10 - Image 2

Specifications

Number of Conductors: 2-8 Pin
Mounting Type: Cord
Gender: Female
Termination Style: Solder Cup
Locking: Button Locking
Handle Material: Thermoplastic
Packaging Type: Bulk
Standard Connector Type: Mini-XLR
Operating Temperature: -30℃ to +80℃
Applicable Cable Diameter: φ1.5~φ6mm

Electrical

Rated Current/Voltage: 3A 250VAC
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥1GΩ
Withstanding Voltage: 1000VDC

Mechanical

Contact Pin Diameter: 2-6 pins: φ1.0mm / 7-8 pins: φ0.8mm
Single Pin Withdrawal Force: 21g (Standard gauge)
Insertion/Extraction Force: 5~30N
Life Cycle: 5000 Cycles
Coupling Locking Style: Button Latch

Pin number	2, 3, 4, 5, 6, 7, 8
