SA260-PMS00

The XLR connector is a circular, multi-pin interface renowned for its locking mechanism, ensuring secure connections. Commonly featuring multi pins, it excels in transmitting balanced audio signals with minimal noise interference.

  • Style: classic shape
  • Secure Locking Mechanism‌: Prevents accidental disconnections in dynamic environments.
  • ‌Balanced Audio Transmission‌: Reduces noise for high-fidelity signal transfer.
  • ‌Durable Construction‌: Robust metal housing withstands heavy-duty use.
  • ‌Applications: Versatile for audio, lighting, and industrial control systems. Widely used in mics, mixers, and studio/live sound setups.

Features:

  • Pin Number: 3 – 7 Pin
  • Applicable Cable Diameter: φ3.0~φ7.0mm
Categories:
Contact Us

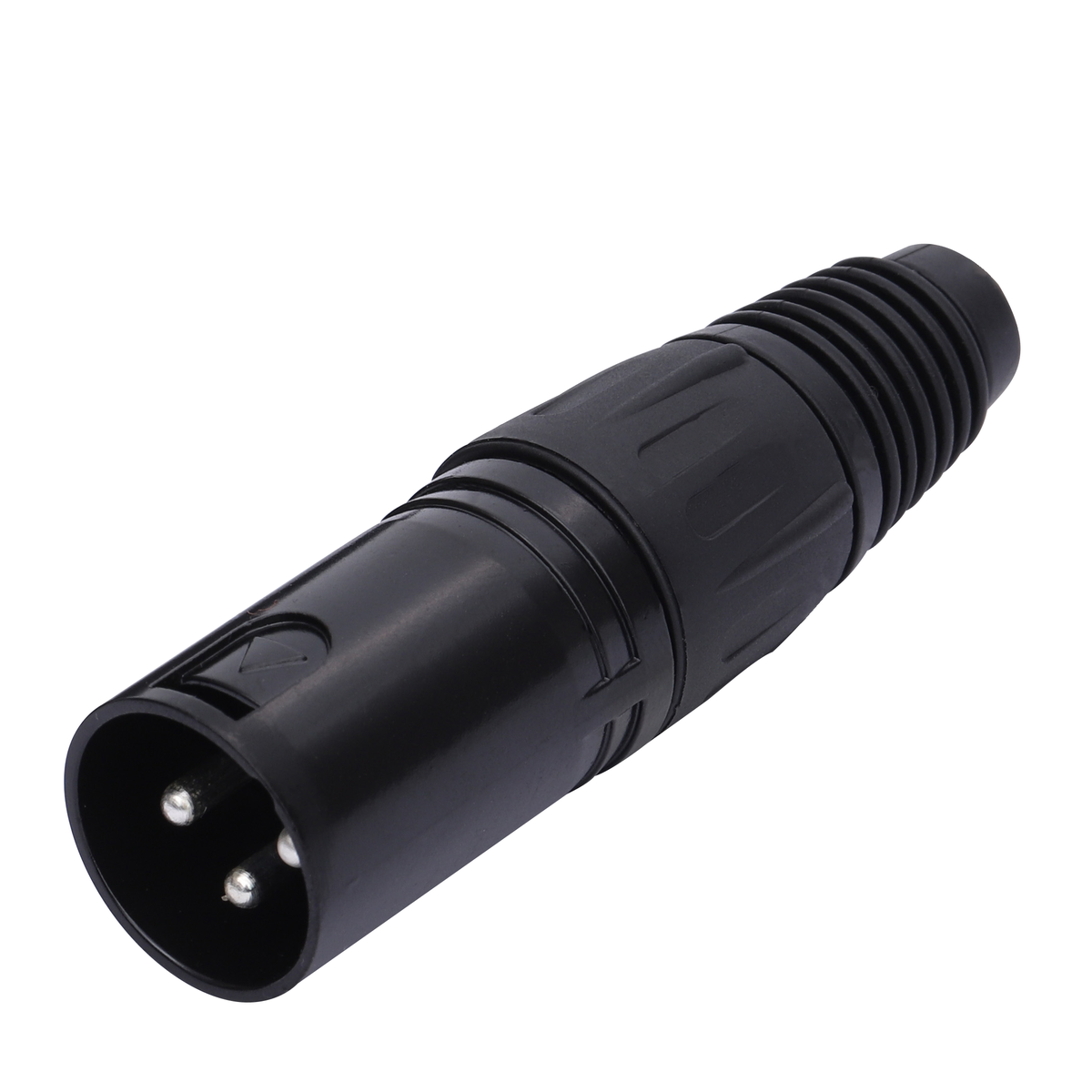

SA260-PMS00

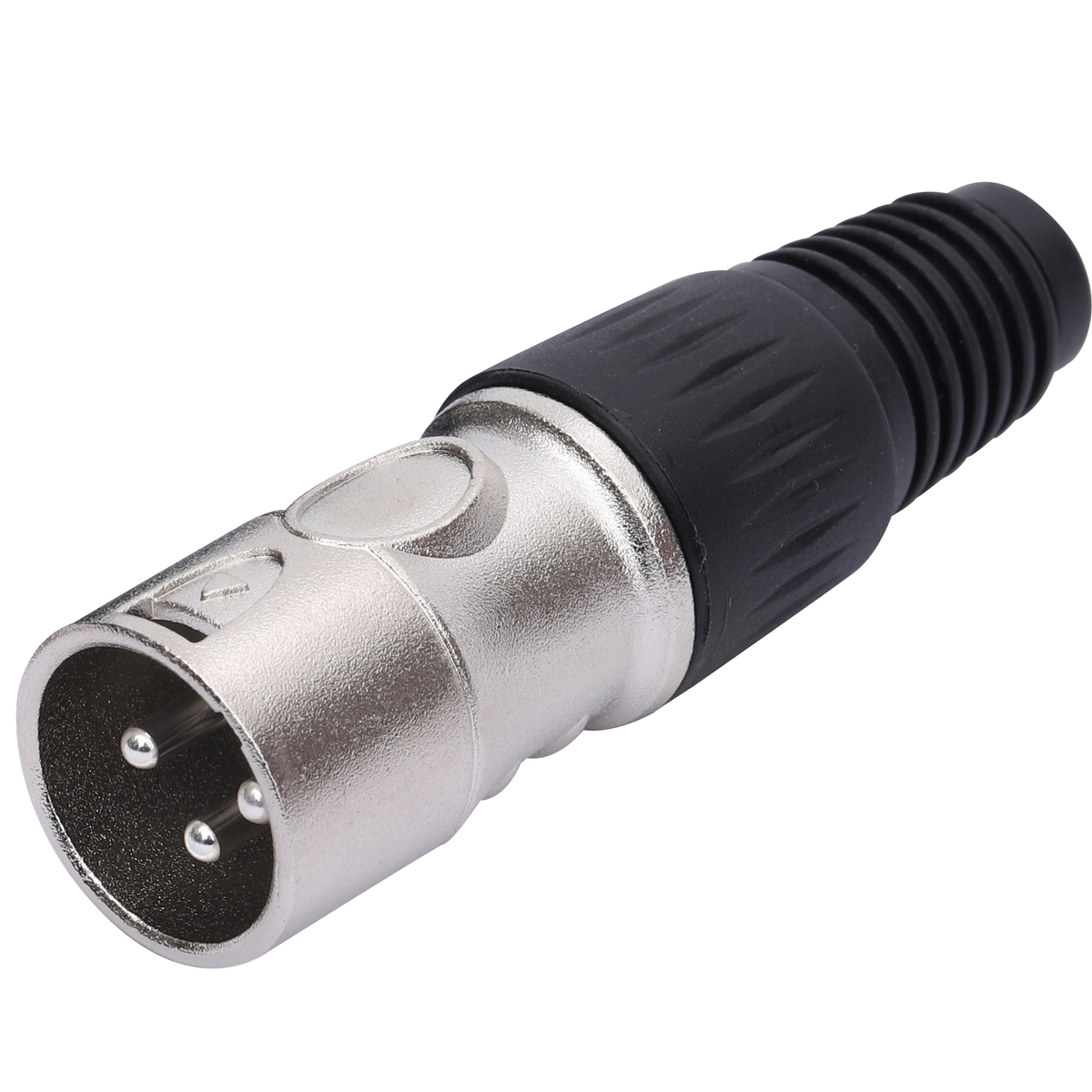

SA260-PMS00 - Image 2

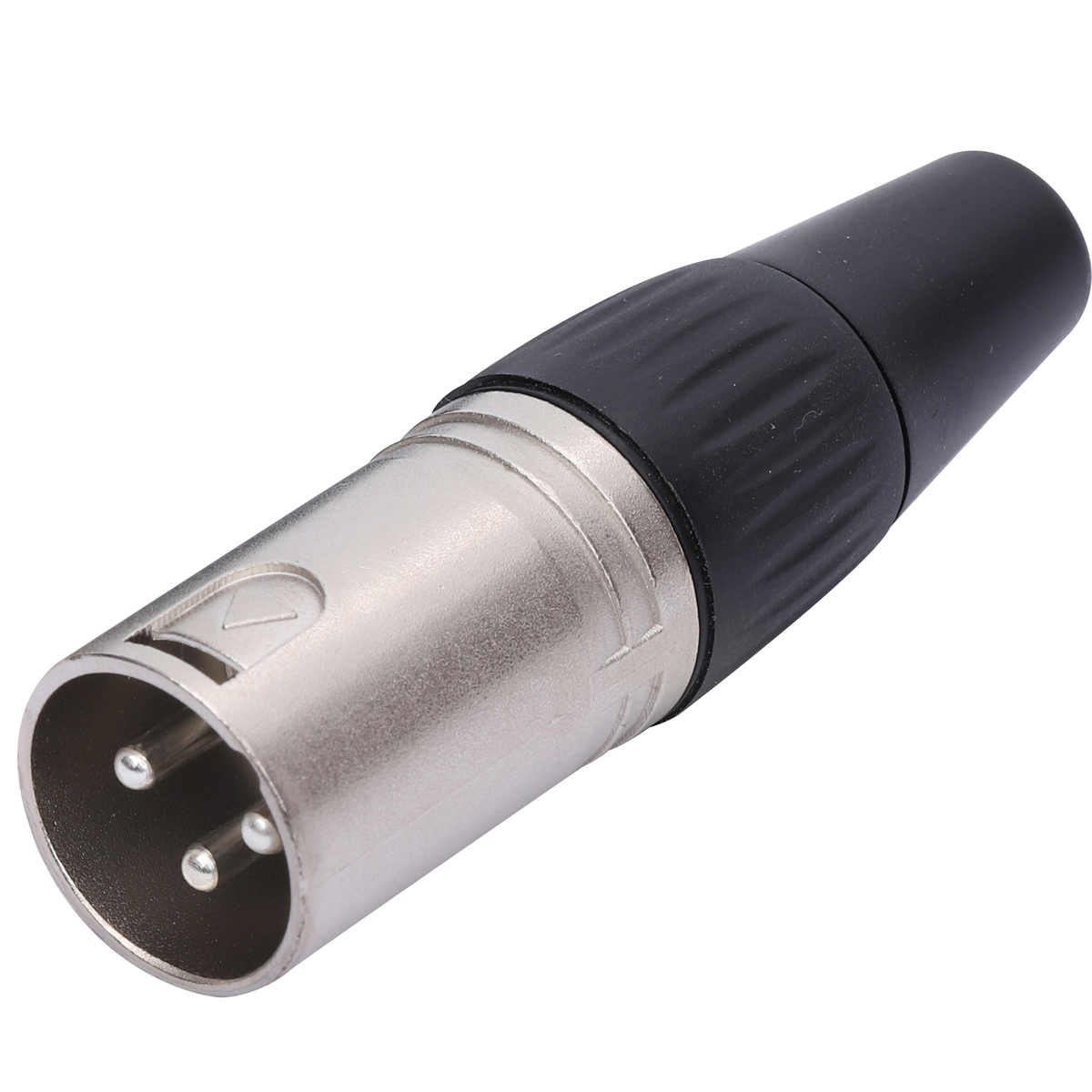

SA260-PMS00 - Image 3

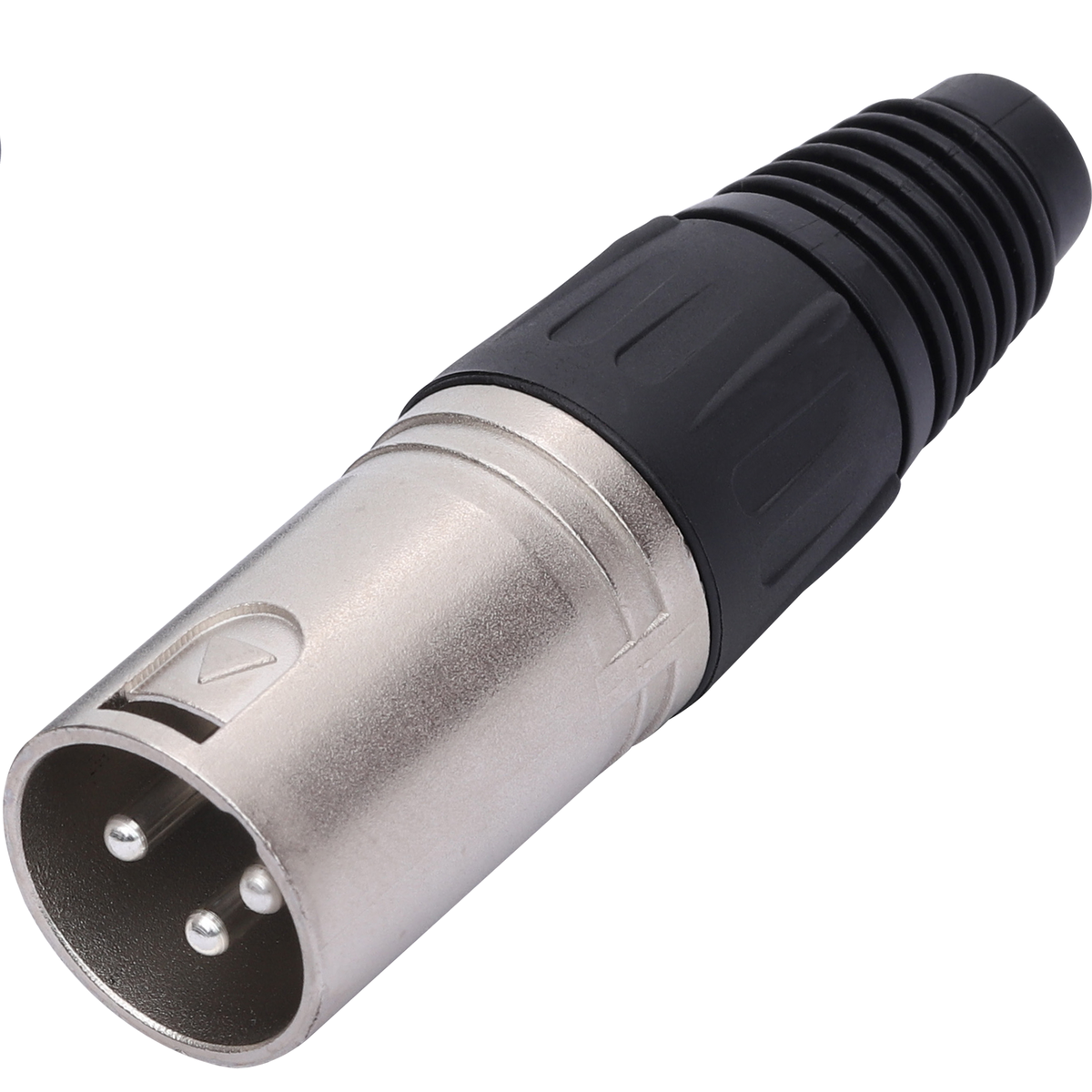

SA260-PMS00 - Image 4

Specifications

  • Number of Conductors: 3 – 7 Pin
  • Mounting Type: Cord
  • Gender: Male
  • Locking: Button Locking
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: XLR Connector
  • Operating Temperature: -30℃ to +80℃
  • Applicable Cable Diameter: φ3.0~φ7.0mm
  • Applicable Cable Specification: 12 AWG

Electrical

  • Rated Current/Voltage: 7.5A  / 50VAC
  • Contact Resistance: ≤6mΩ
  • Insulation Resistance: ≥1GΩ
  • Withstanding Voltage: 1400VDC

Mechanical

  • Insertion/Extraction Force: 10~30N
  • Life Cycle: 1000 Cycles
  • Coupling Locking Style: Button Latch
Pin number

3, 4, 5, 6, 7
Surface treatment

Chromium sardine, Electrophoretic black, Nickel
Design type

A, B, default
