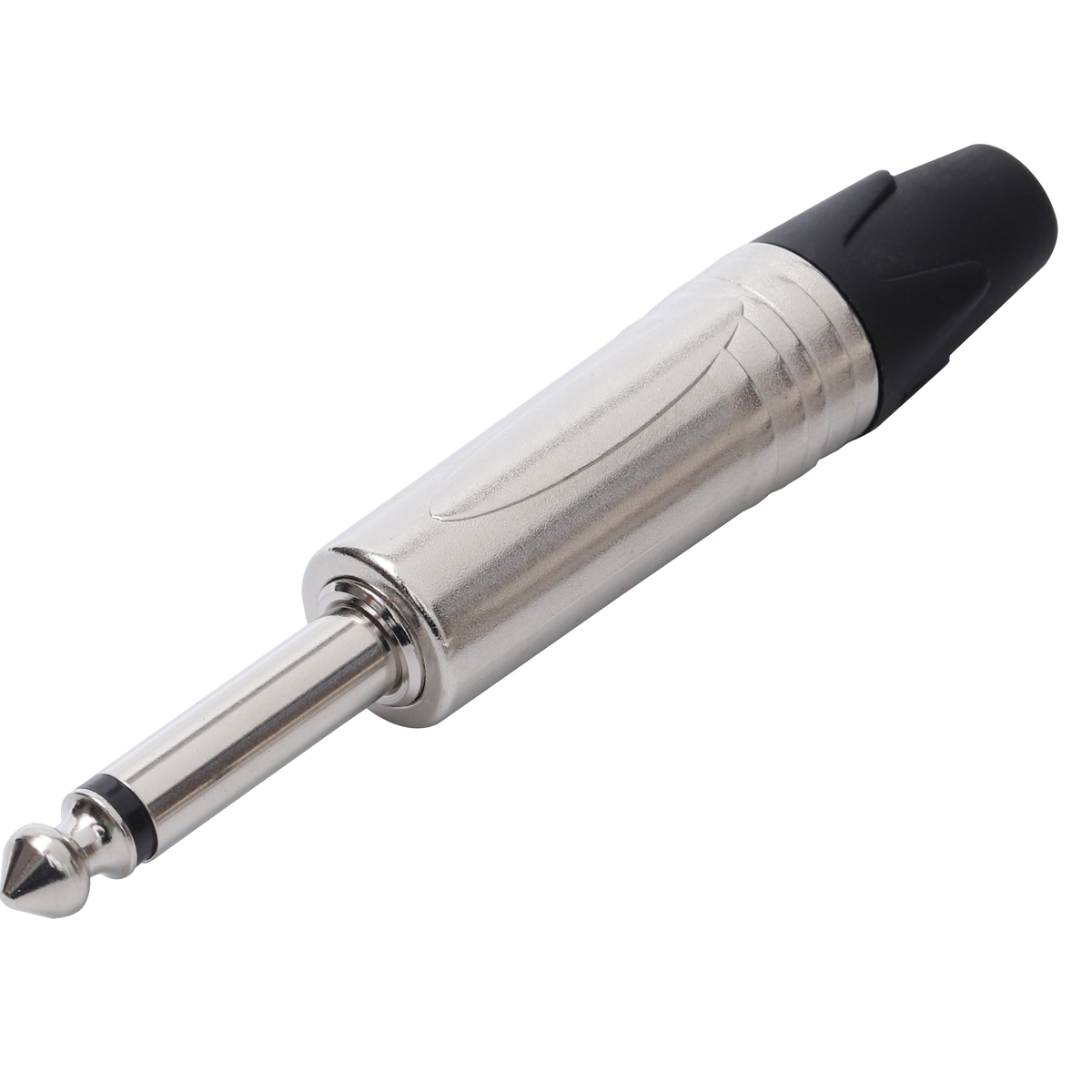

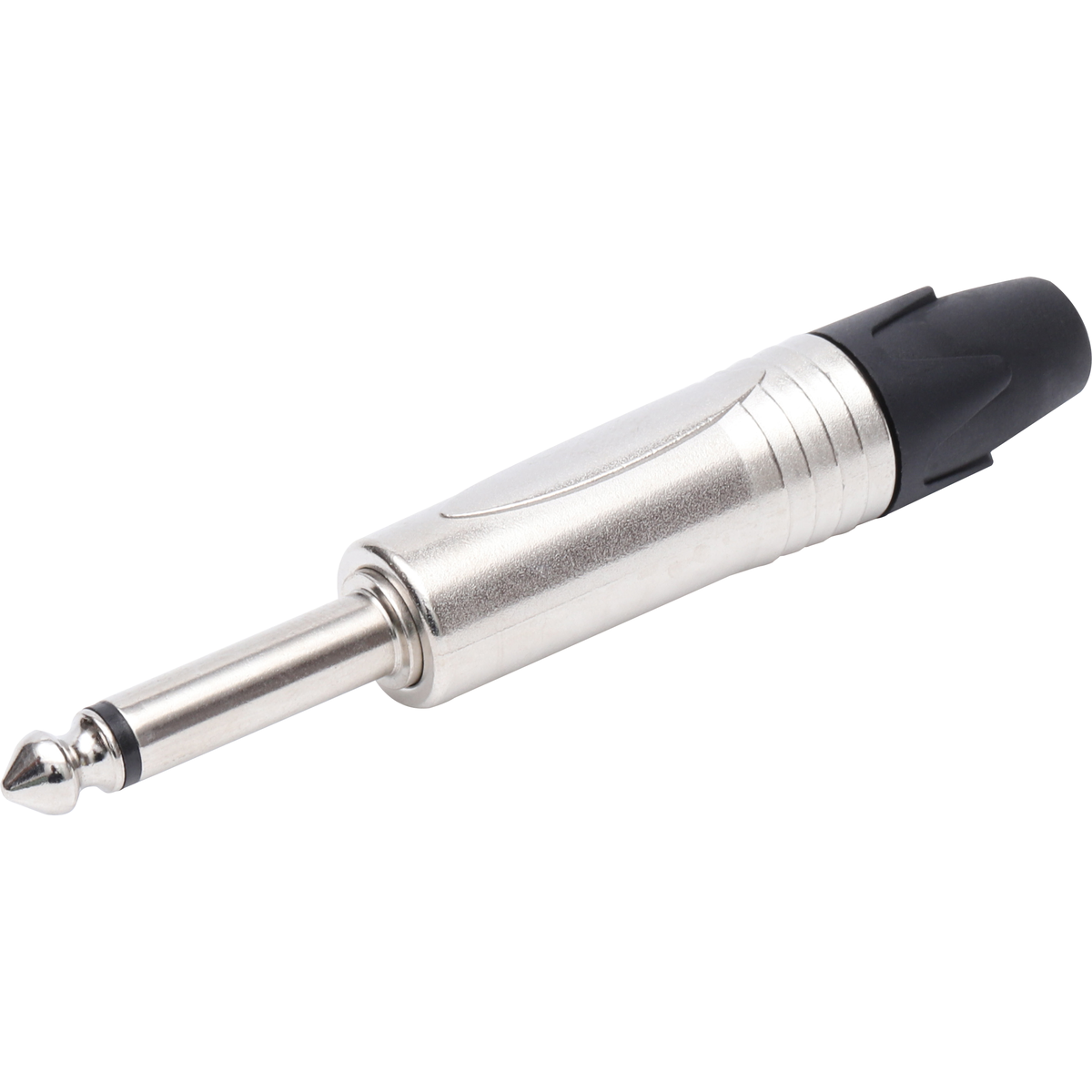

SB135

Feature:

  • Channel: Single channel
  • Ultra-slim 1/4″ connectors‌ achieve industry-leading port density for space-constrained installations.

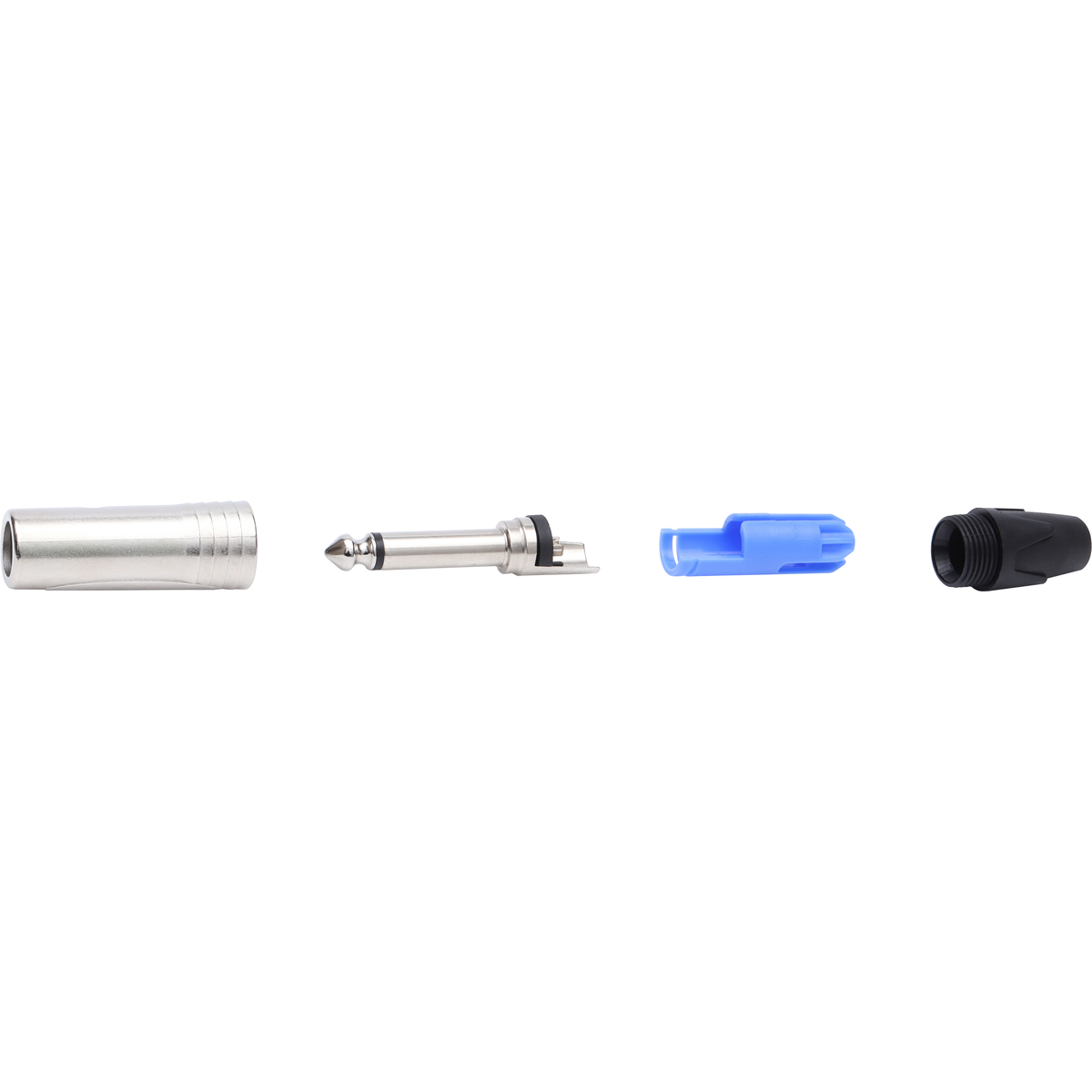

  • Precision die-cast housing‌ combines novel structural engineering with military-grade durability.
  •  Rotating chuck collar‌ integrates anti-slip grooves and strain relief for vibration-resistant cable management.
  • Mirror-polished ergonomic interface‌ enables single-handed blind mating operations in low-visibility environments.
Categories:

Specifications

  • Channel: Single
  • Mounting Type: Cord
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4″ Jack
  • Operating Temperature: -20℃ to +65℃

Electrical

  • Rated Current/Voltage: 3A  / 500VAC
  • Contact Resistance: ≤10mΩ
  • Insulation Resistance: ≥200MΩ
  • Withstanding Voltage: 1500VDC

Mechanical

  • Insertion/Extraction Force: 5~40N
  • Life Cycle: 1000 Cycles

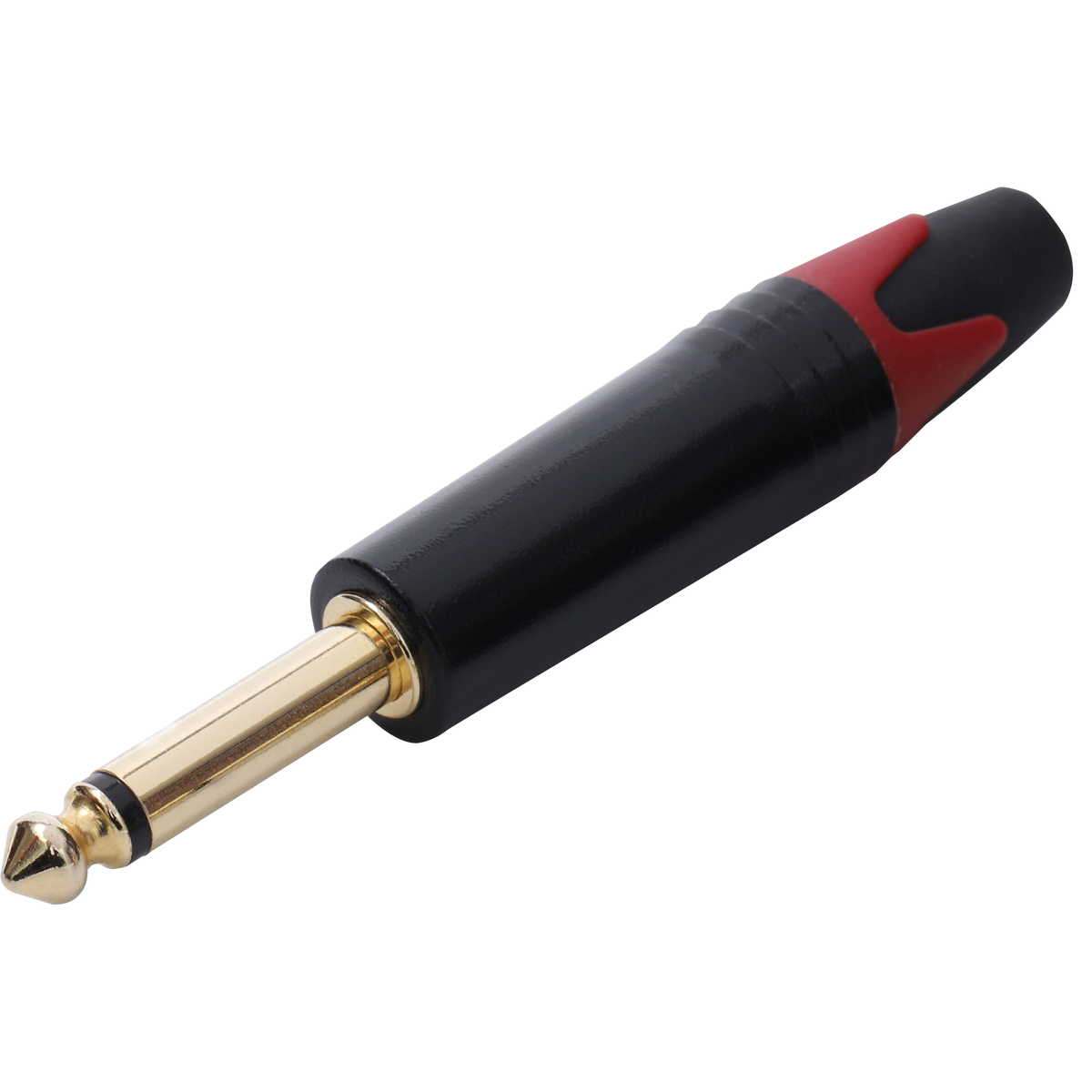

Ring Color

black, red

Surface treatment

Electrophoretic black, Nickel
