Specifications
- Packaging Type: Bulk
- Standard Connector Type: 3.5mm Jack
- Operating Temperature: -20℃ to +65℃
Electrical
- Contact Resistance: ≤15mΩ
- Insulation Resistance: ≥100MΩ
Mechanical
- Insertion/Extraction Force: 2~20N
- Life Cycle: 5000 Cycles

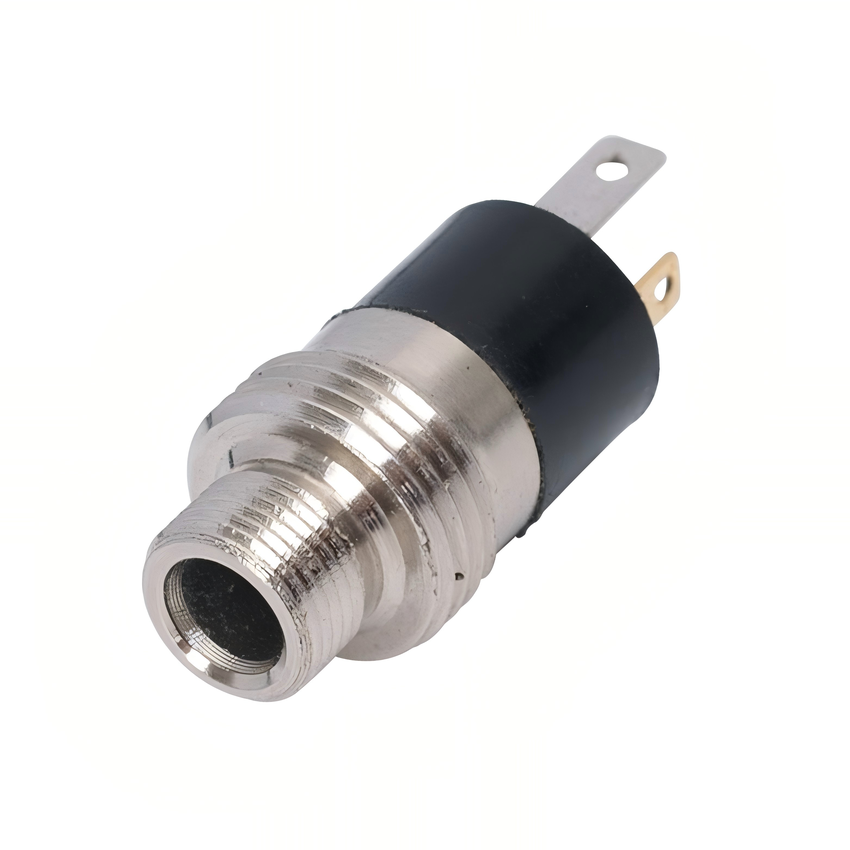

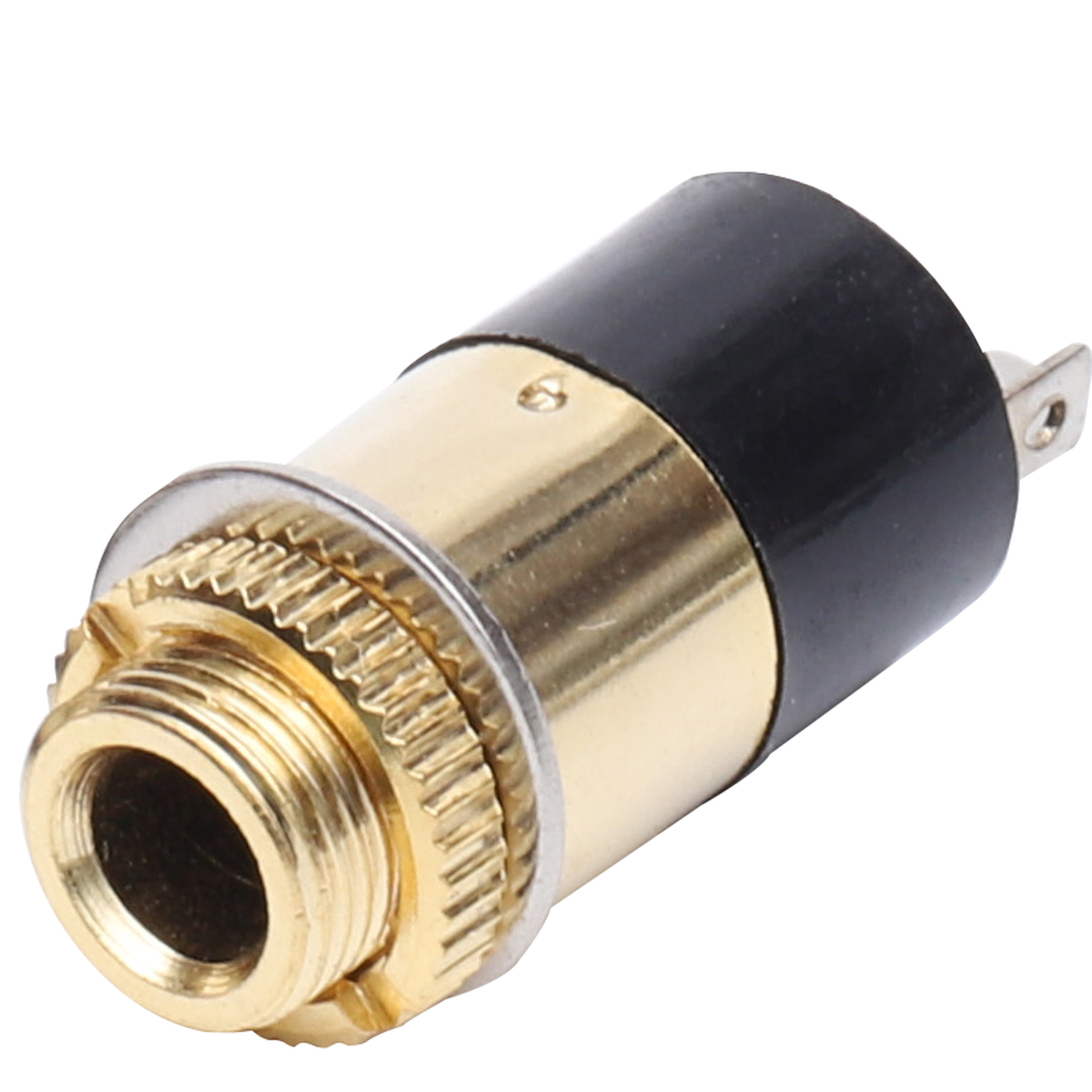

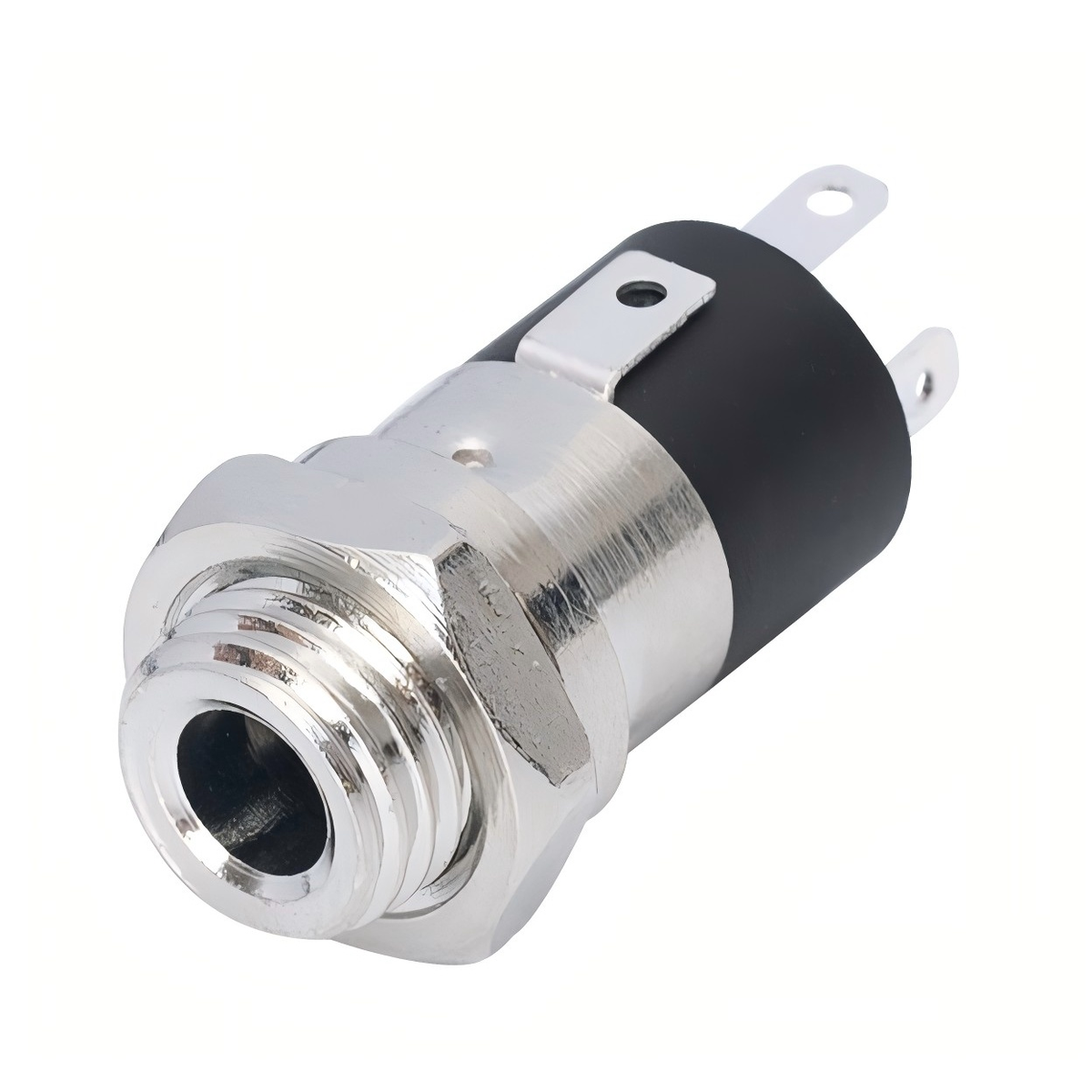

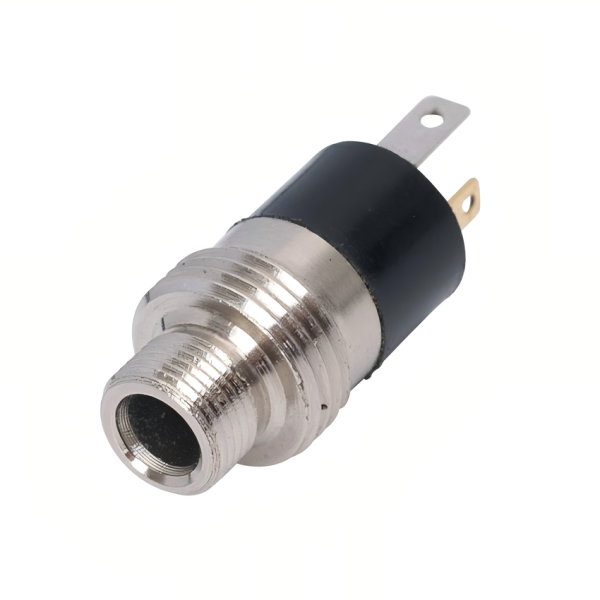

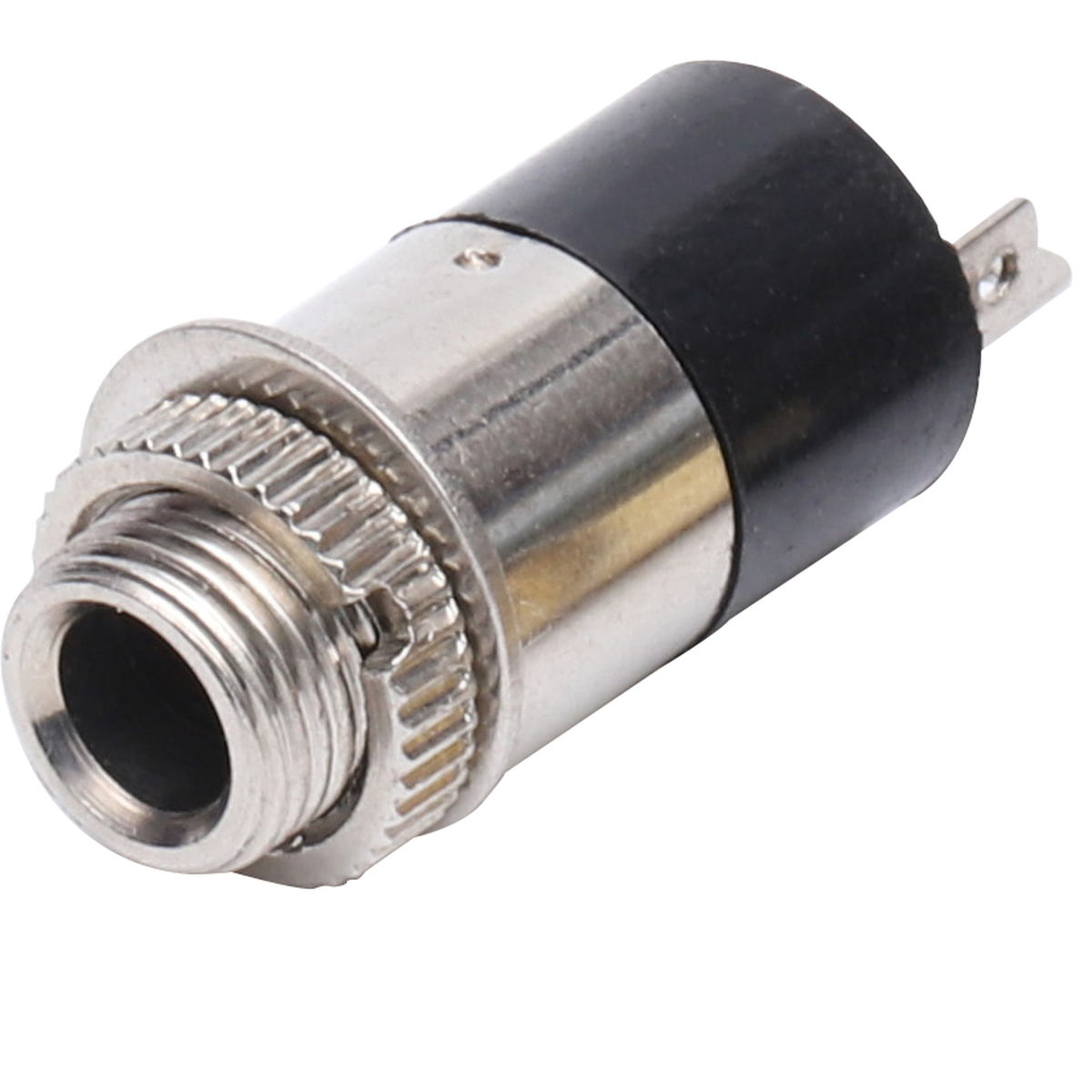

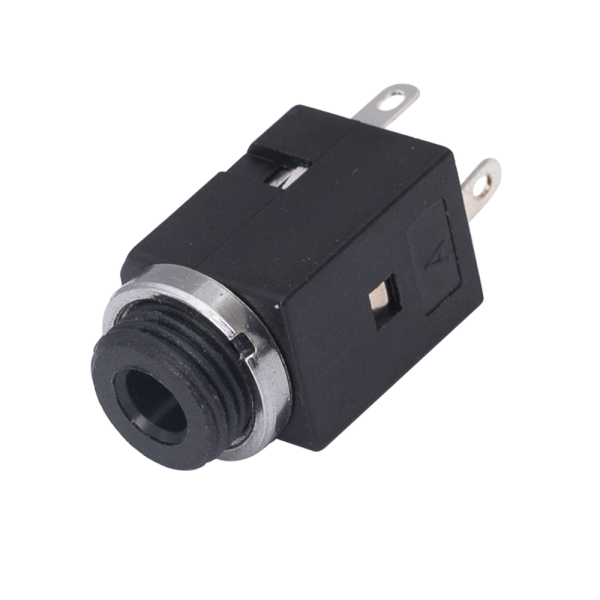

SB402
Feature：
- Nickel-plated or gold-plated shell enhances corrosion resistance, with low-impedance contacts for stable signal transmission
- Precision die-cast housing combines rugged durability (IP54-rated) and modern ergonomic contours
- Reinforced chuck-lock mechanism prevents cable torsion and detachment under dynamic conditions
- Supports max 6mm-thick AWG cables, engineered for pro-grade headphones and portable audio devices
Categories: 3.5 Plug & Jack
| Pin number | 3, 4 |
|---|---|
| Surface treatment | Gold, Nickel |
| Design type | A, B, default |
